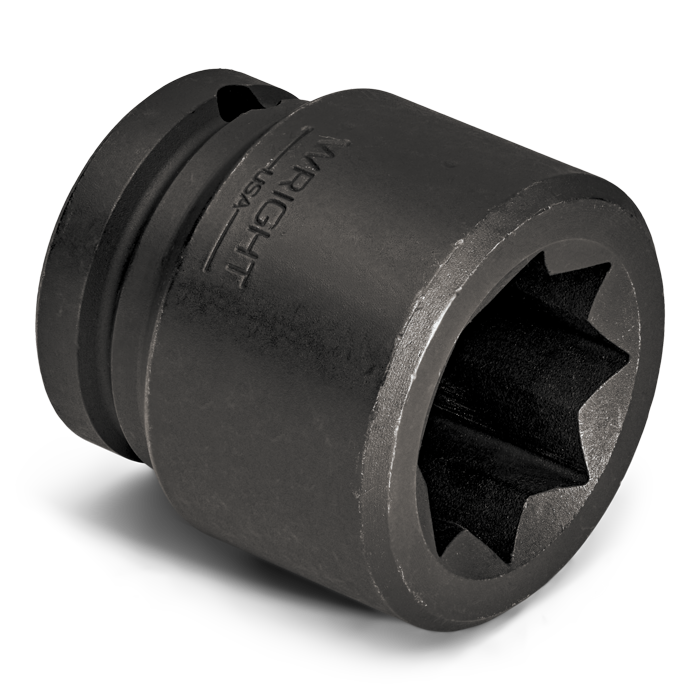

1" Drive 8 Pt Double Square Standard Impact (Railroad) Sockets - SAE

Warning: Wear safety goggles user and bystander

Warning: Tool safety info - Download Safety PDF

Warning: Comfort or plastic grips do not protect against electric shock.

Warning: Wear safety goggles user and bystander

Warning: Tool safety info - Download Safety PDF

Warning: Comfort or plastic grips do not protect against electric shock.

01

features & benefits

Features & benefits

- Patented Wright Drive® design distributes contact over a larger surface area for greater gripping power and strength. Oiled Black Oxide finish
- Forged and Machined for Best Fit and Unyielding Strength
- Precision Heat-Treated and tempered for optimal hardness, ductility and durability
- Easy to read stamp pattern in order to quickly determine opening size
- Made in the USA. Designed, Engineered and Manufactured in Barberton, OH
- Meets and exceeds ASME B107 hand tool standards
02

products

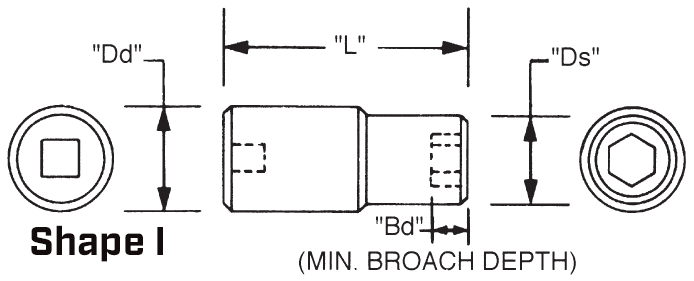

Diagram - I

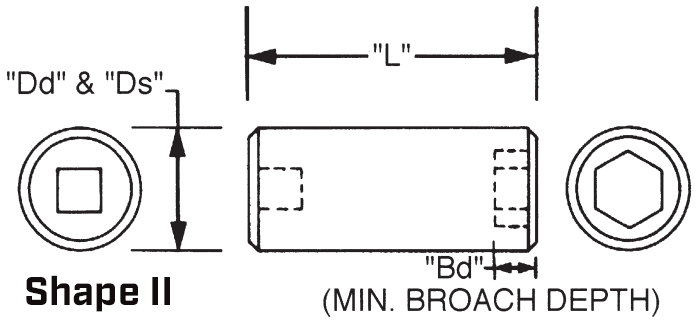

Diagram - II

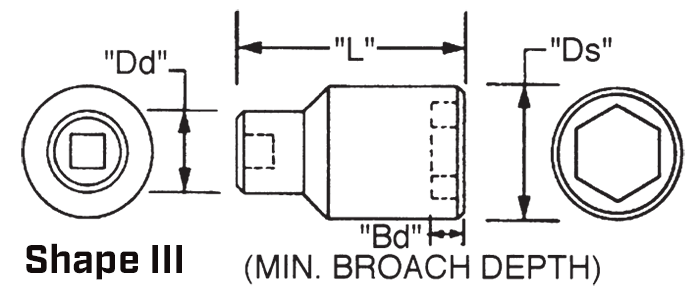

Diagram - III

part number
Drive Size
Country of Origin
UOM
Points
Finish
Nom. Size
Ret Ring
Shape
L
Ds
Dd
Bd
Part Number
8807
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
7/8"
Ret Ring
6583
Shape
I
L
2-9/16"
Ds
1-3/4"
Dd
2"
Bd
1/2"
part number 8807
Part Number
8808
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
1"
Ret Ring
6583
Shape
II
L
2-11/16"
Ds
2-1/16"
Dd
2-1/16"
Bd
35/64"
part number 8808
Part Number
8809
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
1-1/8"
Ret Ring
6583
Shape
III
L
2-11/16"
Ds
2-1/4"
Dd
2-1/16"
Bd
21/32"
part number 8809
Part Number
8810
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
1-3/16"
Ret Ring
6583
Shape
III
L
2-11/16"
Ds
2-1/4"
Dd
2-1/16"
Bd
21/32"
part number 8810
Part Number
8810A
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
1-5/16"
Ret Ring
6583
Shape
III
L
2-11/16"
Ds
2-1/2"
Dd
2-1/16"
Bd
49/64"
part number 8810A
Part Number
8811
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
1-3/8"
Ret Ring
6583
Shape
III
L
2-11/16"
Ds
2-1/2"
Dd
2-1/16"
Bd
25/32"
part number 8811
Part Number
8811A
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
1-7/16"
Ret Ring
6584
Shape
III
L
2-11/16"
Ds
2-3/4"
Dd
2-5/16"
Bd
7/8"
part number 8811A
Part Number
8812
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
1-1/2"
Ret Ring
6584
Shape
III
L
2-11/16"
Ds
2-3/4"
Dd
2-5/16"
Bd
55/64"
part number 8812
Part Number
8813
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
1-5/8"
Ret Ring
6584
Shape
III
L
3-1/2"
Ds
3-1/16"
Dd
2-5/16"
Bd
1"
part number 8813
Part Number
8815
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
1-13/16"
Ret Ring
6585
Shape
III
L
3-1/2"
Ds
3-1/4"
Dd
2-7/16"
Bd
1-1/8"
part number 8815
Part Number
8816A
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
2"
Ret Ring
6585
Shape
III
L
3-1/2"
Ds
3-1/2"
Dd
2-7/16"
Bd
1-7/32"
part number 8816A
Part Number
8817
Drive Size
1"
Country of Origin
UNITED STATES
UOM
SAE
Points
8
Finish
Black Oxide
Nom. Size
2-3/16"
Ret Ring
6586
Shape
III
L
3-1/2"
Ds
3-3/4"
Dd
2-3/4"
Bd
1-3/8"
part number 8817

wright drive 2.0 on board

The Wright Drive 2.0 design distributes contact stress more effectively than any other wrench system available. It spreads stress evenly over a larger contact area and away from the fastener corners.



learn more about wright drive 2.0

10x
more contact
than conventional 12-point designs
1.7x
more contact
than 2nd generation AS954 12-point
